Pro Series

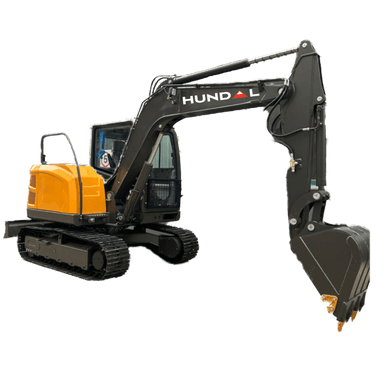

Hundal ROCKLINE 65

HHI-RL65

Brand: Hundal Heavy Industries

5.0|24 reviews

Request a quote

Fleet pricing available

Price confirmed with dealer quote and configuration.

Request quote Talk to sales

Availability

Confirmed in quote

Lead time

Confirmed in quote

Powertrain

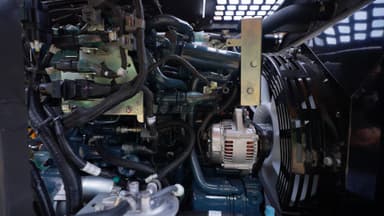

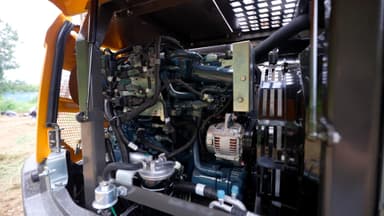

Turbocharged EFI diesel, water-cooled (4-cylinder)

Engine

Kubota V2607 / Yanmar 4TNV94L (configurable)

Included support

Dealer delivery coordination

Financing support on approval

Parts availability guidance

Operator onboarding resources

Operating Weight

6 t (13,200 lbs)

Bucket Capacity

0.21 m³

Engine

Kubota V2607 (or Yanmar 4TNV94L)

Rated Power

42.4 kW (58 HP) @ 2000 rpm

System Pressure

28 MPa (4061 PSI)

Hydraulic Flow Rate

132 L/min (35 GPM)

Swing Speed

0-1 rpm

Travel Speed

2.4-4.3 km/h

SPEC SHEET

Download the Spec Sheet of this machineContact us to know more about the machine, it is way easier to speak to a representative than you might thinkDownload

FAQ

Frequently asked questions

What engine options are available on the ROCKLINE 65?

It can be equipped with a turbocharged Kubota V2607 or Yanmar 4TNV94L water-cooled EFI diesel engine, producing up to 42.4 kW (58 HP) at 2000 rpm.

What hydraulic system does it use?

A variable double pump + load sensing system with a maximum working pressure of 28 MPa, tuned to match engine output for efficient digging and smooth load response.

What operator features are included in the cabin?

A full sealed, sound-insulated cab with air conditioner, radio player, garment hook, towel rack, sunshade curtain, and a safety hammer.

Standard features

Built-in power and control

Prestige hydraulic pressure system: variable double pump + load sensing, max working pressure 28 MPa (best-in-class for its segment)

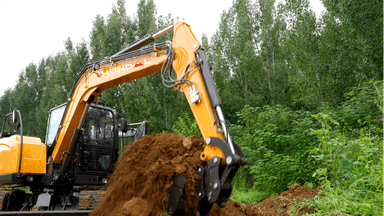

Exceptional digging performance with strong bucket breakout force and efficient reach-to-depth working range

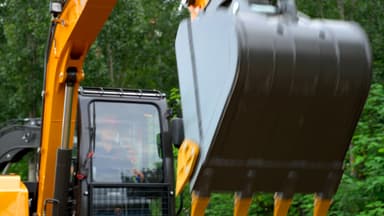

Optimized arm + bucket balance for faster, more confident excavation in demanding conditions

360° slewing rotation via fixed motor + planetary reducer + gear ring; normal-closed slewing brake with buffer valve for smoother braking

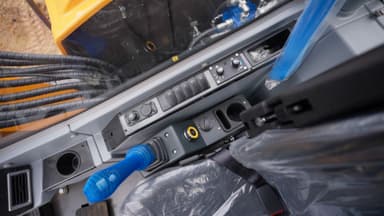

Servo control system with accumulator, overflow valve, high-pressure filter, check valve, and solenoid directional valve for safety and emergency lowering support

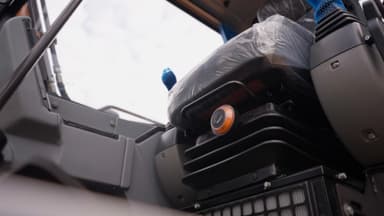

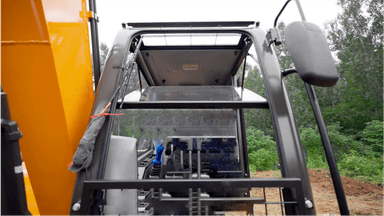

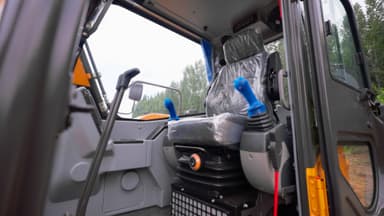

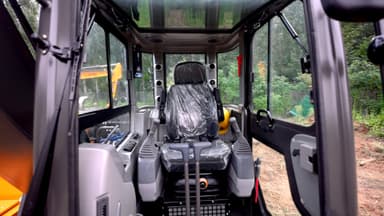

Supreme cabin: full sealed sound insulation with air conditioner, radio player, garment hook, towel rack, sunshade curtain, and safety hammer

High-strength excavating arm built from high-strength steel with optimized cross-section to reduce stress concentration and deformation

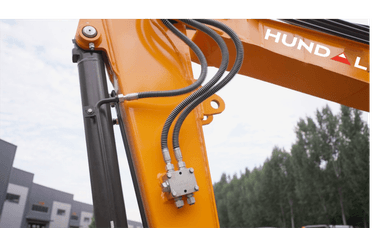

Protected cylinder hoses routed internally within the boom to reduce external damage and abrasion

Optional dual hydraulic pipelines to improve multi-function capability and support simultaneous tasks (grasping/loading/unloading)

Precision industrial welding + heat treatment + controlled fabrication for strong joints, longer service life, and lower operating costs

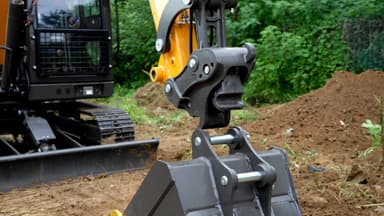

Attachment-ready (auger, breaker, and common auxiliary tools), configured per quote
